500 KHz Anti Jamming 32 Amps 15mm Common Mode Rf Choke

Product Categories
ANHUI TIGER CO,.LTD
Contact Now

500 KHz Anti Jamming 32 Amps 15mm Common Mode Rf Choke

Brand Name : Tiger

Model Number : TG-TI009

Certification : ISO, CE,UL, RoHS

Place of Origin : China

MOQ : 1000pcs

Price : negotiation

Payment Terms : T/T, Western Union

Supply Ability : 10000pcs/day

Delivery Time : around 20 days

Packaging Details : Carton: size 28*20*17cm Pallet : size 90*90*95cm (60 cartons)

Size : 15mm

Weight : 0.5kgs

OEM : accepted

samples : free

shipping : by air or by sea

shipping term : FOB ShangHai

Contact Now

Common Mode Choke 15mm Size Current ratings available up to 32 Amps




Features

  • High saturation
  • High efficiency
  • Good anti-jamming performance
  • Excellent solder ability
  • High reliability
  • Frequency range from 50 KHz to 500 KHz
  • Current ratings available up to 32 Amps
  • Inductance values available from 0.116 mH to 13.58 mH
  • Excellent coupling leakage factor and mode attenuation
  • 3 mm of creepage between windings
  • Parts meet UL, IEC & VDE safety standards

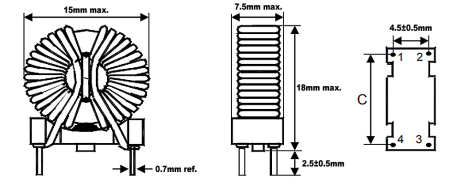

Mechanical Drawing(mm)



500 KHz Anti Jamming 32 Amps 15mm Common Mode Rf Choke





                                            500 KHz Anti Jamming 32 Amps 15mm Common Mode Rf Choke





Electrical Specifications



Item Test Terminal Spec Test Condition
Inductance Lo 5.0mH ±30% 1 kHz /0.1V
Resistance RDC 200mΩ max. @25℃
Nominal current IDC 1.0A max. Tu = 60℃
Nominal voltage UN 230V typ.




Application


TIGER designs and manufactures a wide range of products for critical applications in various industries, including but not limited to,
· Automotive
· Consumer Electronics
· Industrial
· Medical
· Military & Aerospace
· Telecommunications
We are uniquely positioned to offer the highest quality products for critical applications as well as cost effective products for price sensitive applications.




FAQ
1. Q: Can I get some samples?
A: Yes, sample order is available for quality check and market test.
2. Q: What's the delivery time?
A: Sample order needs 10 days. Formal order needs around 20 days.
3. Q: What's your payment terms?
A: We usually accept T/T at sight as the main payment terms, and other payment can also be negotiated.
4. Q: Do you have the prodcts in stock?
A: Yes,we will keep some general ones in stock.
5. Q: Can I mix different models in one container?
A: Yes,different models can be mixed up.


500 KHz Anti Jamming 32 Amps 15mm Common Mode Rf Choke

Product Tags:

15mm Common Mode Rf Choke



32 Amps Common Mode Choke



500 KHz Common Mode Rf Choke


Buy cheap 500 KHz Anti Jamming 32 Amps 15mm Common Mode Rf Choke product

500 KHz Anti Jamming 32 Amps 15mm Common Mode Rf Choke Images
